SE1000 PDS Motor Control Centers
SE1000 PDS Motor Control Centers

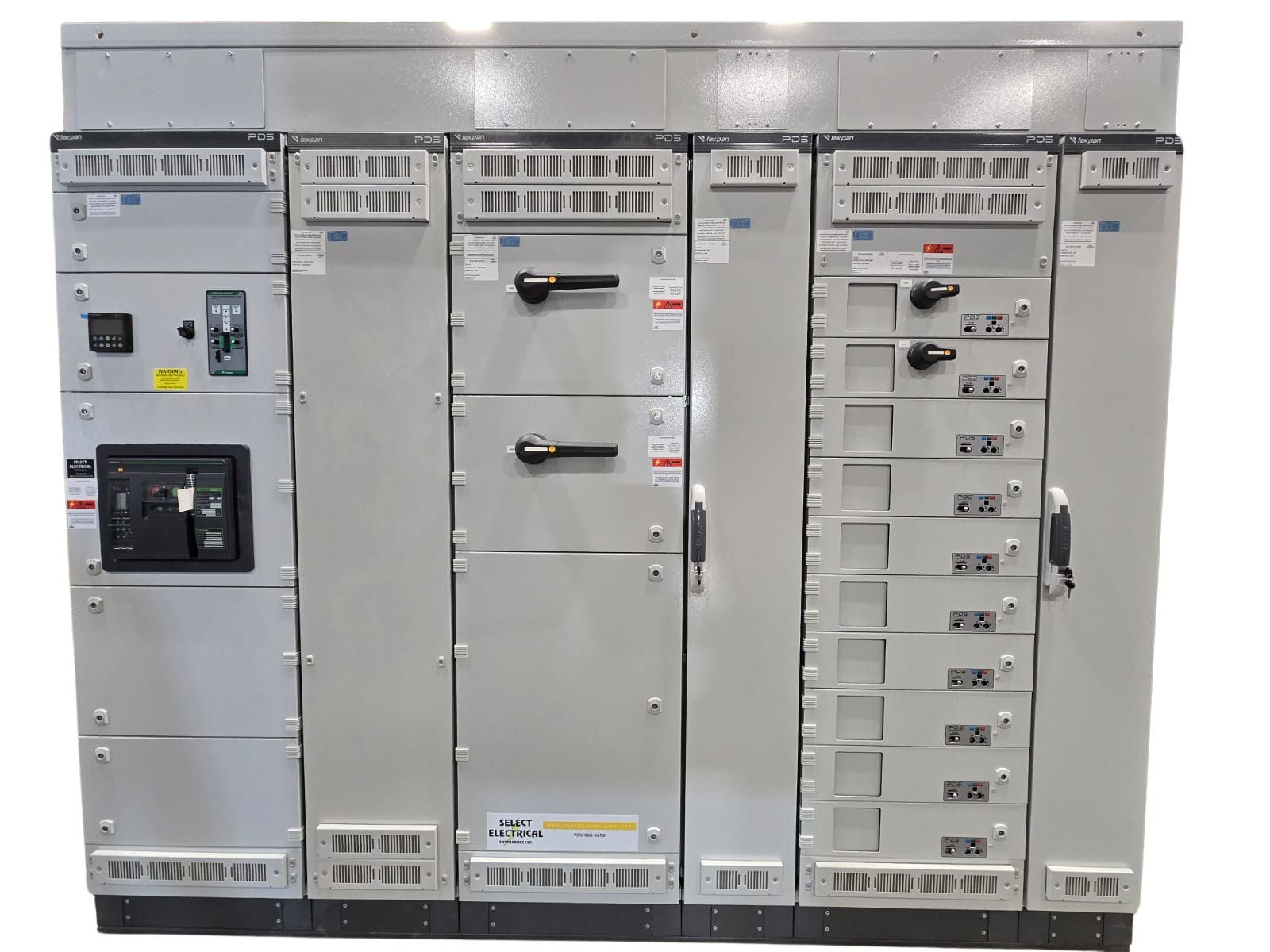

The SE1000-PDS Industrial Motor Control Center offers customizable, turnkey solutions designed to reduce field installation time, improve delivery lead times, and provide cost efficiencies.

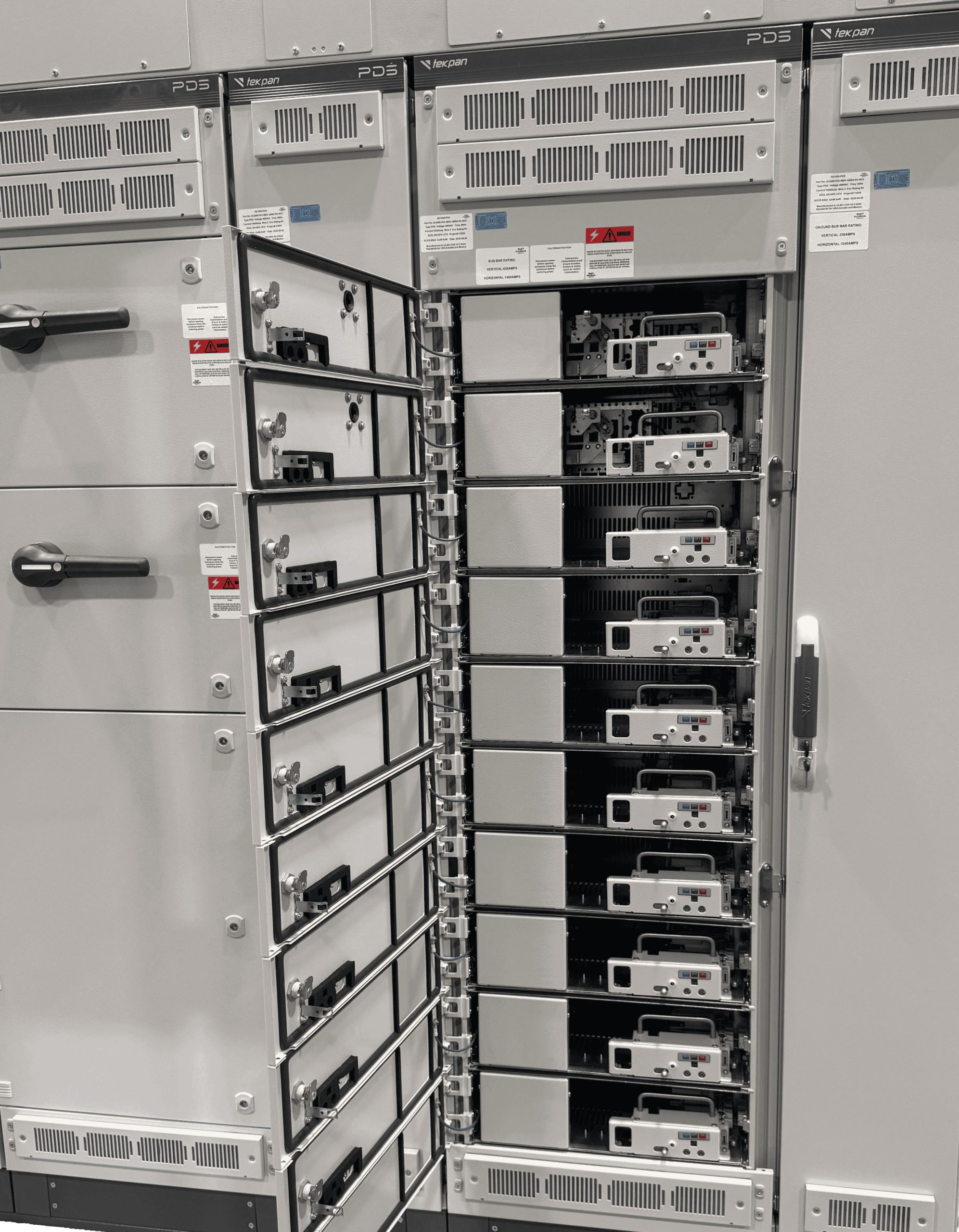

Motor Control Centers (MCCs) are assemblies of one or more enclosed sections that house motor control units. They are used to control, distribute, and protect motors in industrial environments. Our SE1000-PDS Industrial Motor Control Centers streamline motor management by consolidating controls and protection equipment into a central, accessible system. This improves operational efficiency, enhances safety, and simplifies maintenance. MCCs can include a range of components such as motor starters, circuit breakers, VFDs (Variable Frequency Drives), and power monitoring devices.
Each system undergoes a SPE-1000 field approval inspection and is engineered and manufactured in accordance with ETL CSA Standard C22.2 No. 254 and UL845A, with compliance verified during the field approval process.

Equipment Features:
- Available up to 6000A
- 208, 480, and 600V
- Configurable for Top and Bottom Cable Entry and Exit
- Standard 65kA Bus Bracing
- Indoor NEMA 12 / IP52 Enclosure Rating
- Texture Powder Coating RAL7035 Exterior Finish
- Tin Plated Copper Bus Bar
- Ambient Temperature -10 to +40 Degrees Celsius
Our SE1000 PDS Industrial Motor Control Centers are engineered and designed 100 percent in house.
Technical Support:
SEEL employees are available 24/7 to provide expertise support. Whether technicians are required for field support or over the phone support SEEL is here to stand behind our products. We employ Engineering Technicians and Electricians that have extensive application and field experience and are able to help at any time.
