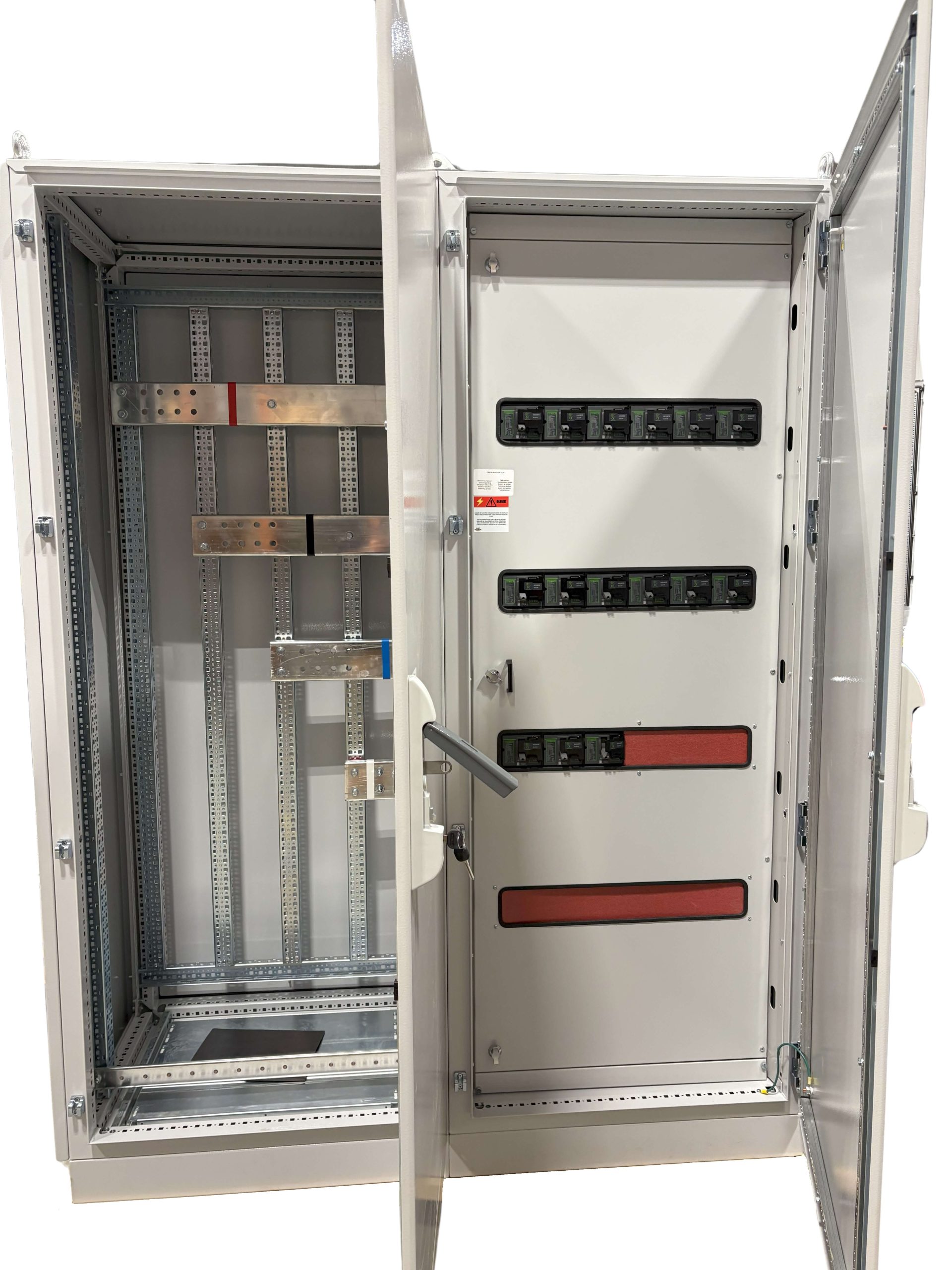

SE3000 Switchboards

SE3000 Switchboards

The SE3000 Switchboards offer customizable, turnkey power distribution solutions engineered for fast lead times, reduced on-site installation, and cost-effective performance.

Switchboards are essential components in electrical distribution systems, designed to manage and control the flow of power within industrial facilities. They distribute electricity from one or more incoming sources to various branch circuits while providing circuit protection and control. Switchboards typically house breakers, disconnects, metering, and protective relays within a single enclosure. Engineered for safety, reliability, and scalability, our SE3000 Switchboards play a critical role in ensuring uninterrupted power delivery and protecting downstream equipment and personnel.

Each unit is built to meet the requirements of ETL CSA Standard C22.2 No. 244:19 and UL891 or NFPA-791, with field approvals conducted under SPE-1000 or NFPA-791 guidelines to ensure compliance and safety.



SE3000 Switchboard Brochure

Equipment Features:

  • Available up to 6000A
  • 208, 480, and 600V
  • Configurable for Top and Bottom Cable Entry and Exit
  • Standard 65kA Bus Bracing
  • Fixed or Withdrawable Buckets
  • Tin Copper Bus Bar
  • Ambient Temperature -10 to +40 Degrees Celsius
  • Textured Powder Coated RAL7035 Exterior Finish
  • Optional N3R Outdoor or Indoor NEMA12
  • Optional Fully Withdrawable Buckets up to 600A

Our SE3000 Switchboards are engineered and designed 100 percent in house.


Technical Support:

SEEL employees are available 24/7 to provide expertise support.  Whether technicians are required for field support or over the phone support SEEL is here to stand behind our products.  We employ Engineering Technicians and Electricians that have extensive application and field experience and are able to help at any time.
